Hot Rolled / Cold Drawn Seamless Stainless Steel Pipe 3 inch for Petroleum

China Hot Rolled / Cold Drawn Seamless Stainless Steel Pipe 3 inch for Petroleum supplier

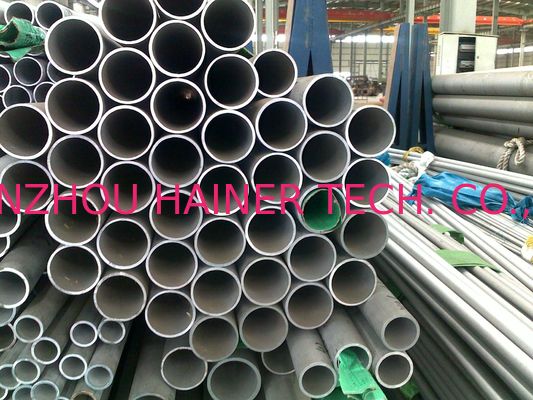

Large Image :  Hot Rolled / Cold Drawn Seamless Stainless Steel Pipe 3 inch for Petroleum

Product Details:

Place of Origin: China
Brand Name: Cosco Steel
Certification: ISO,SGS,CQC,etc.
Model Number: 304/304L,316L,309S,310S,321,347,347H etc.

Payment & Shipping Terms:

Minimum Order Quantity: 500Kgs/ one size
Price: Negotiation
Packaging Details: Plastic bag in bundle,Wooden box,etc.
Delivery Time: 20-25 days
Payment Terms: T/T, L/C at sight
Supply Ability: 600Tons/Month
Detailed Product Description
Finished Method: Cold Drawn Main Material: AISI 304 | AISI 304L | AISI 316L | 2205



Hot Rolled / Cold Drawn Seamless Stainless Steel Pipe 3 inch for Petroleum





Quick Detail:



Standard Specification

ASTM A312,A213,A249,A269,A270A789,A554,A790,etc.

Material

304,304L,309S,310S,316L,317L,321,,347,347H,2205 etc.

Outer Diameter

3 inch ( 88.9mm ), 4 inch ( 114.3mm ) etc

Wall Thickness

Sch 10s, Sch 40s, Sch 80s

Length

As Required

Type

Round,Square Or Other

Delivery condition

Cold Rolled/Cold Drawn





Description:



  1. Product Item No.: 0018smls-Cosco Steel
  2. Size DN(in): 1/8” to 20” According to ANSI B36.1, B36.19M
  3. Wall Thickness: From Sch5s to XXS
  4. Length of pipe: 5 - 5.8 meter, 10 - 11.8 meter,or fixed length
  5. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
  6. Packing: Pipe cap both end,plastic bag in bundle
  7. H.S Code: 7304419000
  8. Material:

  0Cr18Ni9(304), 00Cr19Ni10(304L),

 1Cr18Ni9Ti(321), 0Cr17Ni12Mo2(316)

  00Cr17Ni14Mo2(316L), 0Cr18Ni12Mo2Ti(316Ti), 0Cr19Ni13Mo3(317)

  00Cr19Ni13Mo3(317L), 0Cr25Ni20(310S), 1Cr19Ni11NB(317H)



    9.Standard:

U.S.A Standard ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M

Germany Standard DIN2462, DIN17456

Japanese Standard JIS G3463, JIS G3459





Applications:



We,this type seamless steel pipe be widely used in kinds of industries:

  1. Petroleum,Chemical industry,Environment protection equipment,
  2. Medical equipment,Shipbuilding industry,Paper making factory,
  3. Electric power plant,Pollution discharging project etc.





Specifications



Designation: A312/A312M-04a

Standard specifications For Seamless,Welded,And Heavily Cold Worked Austenitic

Stainless Steel Pipe



Specification

covers

Seamless,straight-seamless welded,

and heavily cold worked austenitic stainless steel pipe

Manufacture Process

Seamless (SML) Pipe

Diameter Tolerance

+/-1%







Permitted Variations

In Wall Thickness







                     Tolerance,% from Nominal

NPS Designator                                         Over      Under

1/8 to 21/2 inc., all t/D ratios                          20         12.5

3 to 18 inc., t/D up to 5% incl.                        22.5      12.5

3 to 18 inc., t/D over 5%                                15          12.5

20 and larger,welded,all t/D ratios                 17.5       12.5

20 and larger,seamless,t/D up to 5% incl.      22.5      12.5

20 and larger,seamless,t/D over 5%              15         12.5

 ---------------------------------------------

  Where: t = Nominal Wall Thickness

         D = Ordered Outside Diameter

Inspection item

  1. Size(outside,wall,length)
  2. Chemical Composition;
  3. Mechanical Testing
  4. Hydro-static Or Nondestructive Electric Test
  5. ICT(Inter-granular Corrosion Test)  etc.

Ordering Information

  • Quantity(feet,meters, or number of lengths)
  • Steel Grade
  • Size(outside diameter,nominal wall thickness,length)
  • Test report requirements
  • Special required
  • Others buyer's required
