Austenitic Thin Wall Large Diameter Stainless Steel Tube TP321/1.4541

China Austenitic Thin Wall Large Diameter Stainless Steel Tube TP321/1.4541 supplier

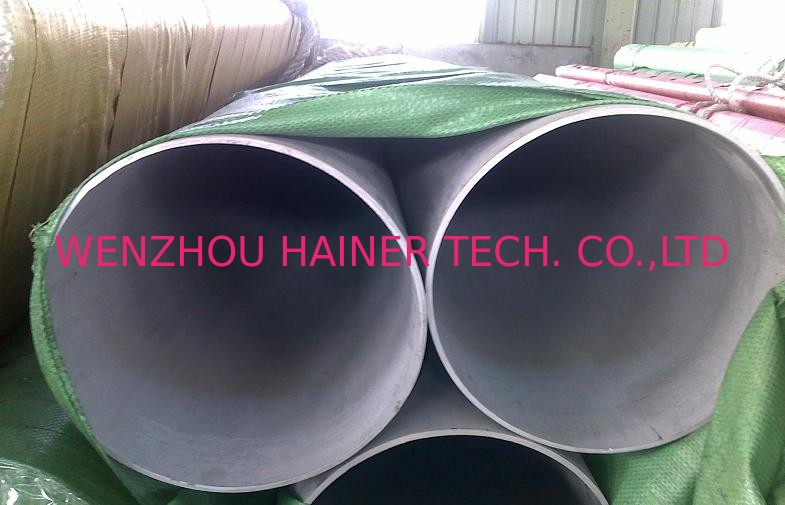

Large Image :  Austenitic Thin Wall Large Diameter Stainless Steel Tube TP321/1.4541

Product Details:

Place of Origin: China
Brand Name: Cosco Steel
Certification: ISO,SGS,CQC,etc.
Model Number: 304/304L,316L,309S,310S,321,347,347H etc.

Payment & Shipping Terms:

Minimum Order Quantity: 500Kgs/ one size
Price: Negotiation
Packaging Details: Plastic bag in bundle,Wooden box,etc.
Delivery Time: 20-25 days
Payment Terms: T/T, L/C at sight
Supply Ability: 600Tons/Month
Contact Now
Detailed Product Description
Size: Big Diameter,Thin Wall Thickness Finished: Cold Drawn
Material: 300 Series Austenitic Stainless Steel Surface: White Color



Austenitic Thin Wall Large Diameter Stainless Steel Tube TP321/1.4541





Quick Detail:



Size: 60 x 2mm, 60 x 2.5mm, 73 x 2mm, 73 x 2.5mm,

         88.9 x 2.6mm, 114.3 x 2.8mm, 168.3 x 3.3mm,

         219.1 x 4mm,273 x 5mm,323.9 x 6mm etc

Length: 3 meter fixed, 6 meter fixed, 8 meter fixed etc.

Delivery Condition: Cold - Finished

Main Material: Tp304, Tp304L, Tp310S, Tp316L etc

Main Standard: ASTM A312, ASTM A213, ASTM A269 etc





Specifications



Designation: A312/A312M-04a

Standard specifications For Seamless,Welded,And Heavily Cold Worked Austenitic

Stainless Steel Pipe

Specification covers

Seamless,straight-seamless welded,

and heavily cold worked austenitic stainless steel pipe

Manufacture Process

Seamless (SML) Pipe

Diameter Tolerance

+/-1%







Permitted Variations

In Wall Thickness







                     Tolerance,% from Nominal

NPS Designator                                           Over      Under

1/8 to 21/2 inc., all t/D ratios                          20         12.5

3 to 18 inc., t/D up to 5% incl.                        22.5      12.5

3 to 18 inc., t/D over 5%                                15          12.5

20 and larger,welded,all t/D ratios                 17.5       12.5

20 and larger,seamless,t/D up to 5% incl.      22.5      12.5

20 and larger,seamless,t/D over 5%              15         12.5



  Where: t = Nominal Wall Thickness

         D = Ordered Outside Diameter

Inspection item

  1. Size(outside,wall,length);
  2. 2.Surface of Pipe;
  3. Chemical Composition;
  4. Mechanical Testing
  5. Hydro-static Or Nondestructive Electric Test
  6. ICT(Inter-granular Corrosion Test)  etc.

Ordering Information

  • Quantity(feet,meters, or number of lengths)
  • Steel Grade
  • Size(outside diameter,nominal wall thickness,length)
  • Test report requirements etc.





Our advantage

  1. Competitive price with good quality
  2. Soonest delivery days (Big enough stock 304L Seamless Pipe in warehouse)
  3. Good quality control system
  4. Good after sales services
  5. Good package

Austenitic Thin Wall Large Diameter Stainless Steel Tube TP321/1.4541
