Product Details:
Payment & Shipping Terms:
|
| Surface Finish: | 2B Finish, No.1 Finish | Material: | S30403, S30400, S31603, S30908, S31008 Etc. |
|---|---|---|---|
| Type: | Seamless, Welded | Wall Thickness: | 10 Mm, 20 Mm, 25 Mm, 30 Mm, 40 Mm, 45 Mm, 50 Mm |
| Wall Tolerance: | Normal +/- 0.5mm | +/- 0.8mm | +/- 1 Mm | +/- 1.5mm | OD Tolerance: | Normal +/- 0.5mm | +/- 1mm | +/- 2mm | +/- 5mm |
| Highlight: | Stainless Steel Round Tube,Small Bore Stainless Steel Tube |
||

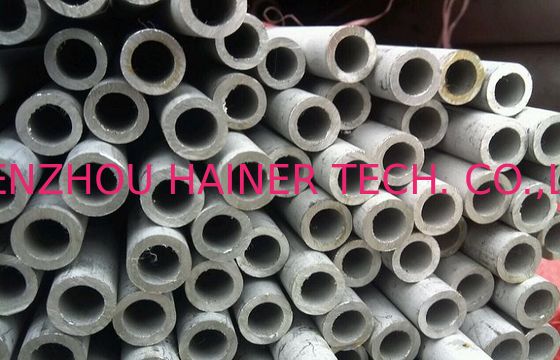

S31803 S32750 Welded Heavy Wall Stainless Steel Tube , JIS AISI ASTM DIN Standard
Quick Detail
Standard:JIS,AISI,ASTM,GB,DIN,EN
Steel Grade:304, 304L, 304LN, 316, 316L, 316LN, 317, 317L, 321, 347, 439, etc.
Type:Seamless, Welded
Outer Diameter Random: 21 mm to 720 mm
Wall Thickness Random: 10 mm to 50 mm
OD tolerance: Normal +/- 0.5mm | +/- 1mm | +/- 2mm | +/- 5mm
Wall tolerance: Normal +/- 0.5mm | +/- 0.8mm | +/- 1 mm | +/- 1.5mm
Length tolerance: Normal +/- 5mm | +/- 10 mm
Description:
Materials:
1.4301/ SUS304/ AISI304/ S30400,
1.4306/ SUS304L/ AISI304L/ S30403,
1.4404/ SUS316L/ AISI316L/ S31603, etc.
Type Of Heavy Wall Stainless Steel Pipe:
Seamless And Welded Manufacturing Round Pipe
Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
Packing: Plastic bag in bundle, wooden box or wooden pallet etc.
H.S Code: 7304.4190 For Seamless Heavy Stainless Steel Pipe/ Tube
H.S Code: 7306.4000 For Welded Heavy Stainless Steel Pipe/ Tube
Ordering Information:
It shall be the responsibility of the purchaser to specify all requirements that are necessary for products under this specification. Such requirements to be considered included,but are not limited to,the following:
1 Quantity ( feet, meters, or number of lengths )
2 Name of material ( seamless tubes/pipes or welded tubes/pipes )
3 Grade ( stainless steel )
4 Size ( outsider diameter, wall thickness )
5 Length ( specific or random )
6 Inspection requirements
7 Condition ( hot finished or cold finished )
8 Special requirements ...
|
Material Included |
Austenitic Steel: |
|
European Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571, |
|
Russia Standard |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б, |
|
GRADE |
Mechanical Propertise |
|||||||||||
|
UNSNO |
DIN |
Tensile Strength |
Yield Strength |
Brinell |
||||||||
|
LOW ALLOY STEELS |
||||||||||||
|
F1 |
K12822 |
15Mo3 |
70(485) |
40(275) |
143-192 |
|||||||
|
F5 |
K41545 |
12CrMo19-5 |
70(485) |
40(275) |
143-217 |
|||||||
|
F9 |
K90941 |
12CrMo9-1 |
85(585) |
55(380) |
179-217 |
|||||||
|
F91 |
K90901 |
X10CrMovN69-1 |
85(585) |
60(415) |
248max |
|||||||
|
F92 |
|
|
90(620) |
64(440) |
269max |
|||||||
|
F11 |
K11597 |
13CrMo44 |
60(415) |
30(205) |
121-174 |
|||||||
|
F12 |
K11562 |
16CrMo44 |
60(415) |
32(220) |
121-174 |
|||||||
|
F22 |
K21590 |
10CrNo9-10 |
60(415) |
30(205) |
170max |
|||||||
|
F23 |
K41650 |
|
74(510) |
58(400) |
220max |
|||||||
|
SCM440 |
|
42CrMo4 |
|
|
|
|||||||
|
SNCM439 |
|
36CrNiMo4 |
|
|
|
|||||||
|
STAINLESS STEELS (MARTENSITIC) |
||||||||||||
|
F6 |
S41000 |
X12Cr13 |
70(485) |
40(275) |
143-207 |
|||||||
|
STAINLESS STEELS (FERRITIC) |
||||||||||||
|
F429 |
S42900 |
|
60(415) |
35(240) |
190max |
|||||||
|
F430 |
S43000 |
|
60(415) |
35(240) |
190max |
|||||||
|
STAINLESS STEELS (AUSTENTIC) |
||||||||||||
|
F304L |
S30403 |
X2CrNi19-11 |
70(485) |
25(170) |
|
|||||||
|
F310 |
S31000 |
X12CrNi25-20 |
75(515) |
30(205) |
|
|||||||
|
F316L |
S31603 |
X2CrNiMo18-14-3 |
70(485) |
25(170) |
|
|||||||
|
F317L |
S31703 |
|
70(485) |
25(170) |
|
|||||||
|
F321 |
S32100 |
X6CrNiTi18-10 |
75(515) |
30(205) |
|
|||||||
|
F347 |
S34700 |
X6CrNiNb18-10 |
75(515) |
30(205) |
|
|||||||
|
F44 |
S31254 |
|
94(650) |
44(300) |
|
|||||||
|
STAINLESS STEELS (DUPLEX) |
||||||||||||
|
F51 |
S31803 |
X2CrNiMoN22-5-3 |
90(620) |
65(450) |
|
|||||||
|
F53 |
S32750 |
X2CrNiMoCuWN25-7-4 |
116(800) |
80(550) |
310max |
|||||||
|
F904L |
NO8904 |
|
71(490) |
31(215) |
|
|||||||
|
SUSF329J3L |
|
|
|
|
|
|||||||
|
F60 |
S32205 |
|
|
|
|
|||||||
|
CARBON STEELS |
||||||||||||
|
A105 |
|
CK25 |
70(485) |
36(250) |
187 |
|||||||
|
A350LF2 |
|
|
70-95(485-655) |
36(250) |
197 |
|||||||
|
A350LF3 |
|
|
70-95(485-655) |
37.5(260) |
|
|||||||
|
A694/F65 |
|
|
77(530) |
65(450) |
|
|||||||
|
S45C |
|
CK45 |
|
|
|
|||||||
|
ALLOY STEELS |
||||||||||||
|
ALLOY20 |
NO8020 |
|
|
|
|
|||||||
|
ALLOY625 |
NO6625 |
|
|
|
|
|||||||
|
ALLOY800 |
NO8800 |
|
|
|
|
|||||||
|
A800H/HT |
NO8810/11 |
|
|
|
|
|||||||
|
ALLOY825 |
NO8825 |
|
|
|
|
|||||||
Applications:
We,this type seamless and welded food steel tube be widely used in kinds of industries:
Specification:
Designation: A213/A213M-04
Standard specifications For Seamless Ferritic and Austenitic Alloy-Steel Boilerr,
Superheater,and Heat-exchanger Tubes
Tensile and Hardness Requirements
|
|
|
Tensile |
Yield |
Elongation in |
|
|
|
Designation |
Min,Ks i |
Min,Ks i |
Min, % |
Brine ll/ Vickers |
Rockwell |
|
Stainless steels
|
TP201 |
S20100 |
95[655] |
38[260] |
35 |
219HBW/230HV |
95HRB |
|
TP202 |
S20200 |
90[620] |
45[310] |
35 |
219HBW/230HV |
95HRB |
|
TP304 |
S30400 |
75[515] |
30[205] |
35 |
192HVW/200HV |
90HRB |
|
TP304L |
S30403 |
70[485] |
25[170] |
35 |
192HVW/200HV |
90HRB |
|
TP309S |
S30908 |
75[515] |
30[205] |
35 |
192HVW/200HV |
90HRB |
|
TP310S |
S31008 |
75[515] |
30[205] |
35 |
192HVW/200HV |
90HRB |
|
TP316L |
S31603 |
70[485] |
25[170] |
35 |
192HVW/200HV |
90HRB |
|
TP321 |
S32100 |
75[515] |
30[205] |
35 |
192HVW/200HV |
90HRB |
|
TP347 |
S34700 |
75[515] |
30[205] |
35 |
192HVW/200HV |
90HRB |
