Home ProductsHeavy Wall Stainless Steel Pipe

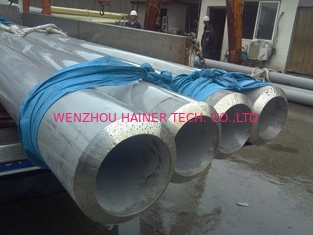

Beveled End 316 904L 2205 Thick Wall Stainless Steel Tubing 508mm x 40 mm

Good quality Stainless Steel Pipe Fitting for sales
Good quality Stainless Steel Pipe Fitting for sales
I'm Online Chat Now

Beveled End 316 904L 2205 Thick Wall Stainless Steel Tubing 508mm x 40 mm

China Beveled End 316 904L 2205 Thick Wall Stainless Steel Tubing 508mm x 40 mm supplier

Large Image :  Beveled End 316 904L 2205 Thick Wall Stainless Steel Tubing 508mm x 40 mm

Product Details:

Place of Origin: China
Brand Name: Hainer Steel
Certification: ISO9001,SGS,CQC,BV,TUV etc.
Model Number: 304/304L316L,310S321,2205,904L etc.

Payment & Shipping Terms:

Minimum Order Quantity: 1000KGS/Size
Price: Negotiation
Packaging Details: Plastic Cap Both End,In bundle
Delivery Time: 15-25Days Or Stock
Payment Terms: T/T, L/C at sight
Supply Ability: 3000Tons/Month
Detailed Product Description
Size: 21 X 5.5 Mm; 60 X 10 Mm; To 720 X 50 Mm Length: 2 Meter To 10 Meter
Type Of Pipe: Seamless | Welded Delivery Condition: Cold Drawn | Hot Rolled |
End Of Pipe: Beveled End | Plain End
High Light:

Thin Wall Stainless Steel Tubing

,

Small Bore Stainless Steel Tube



Beveled End 316 904L 2205 Thick Wall Stainless Steel Tubing 508mm x 40 mm





Quick Detail



Min Size: OD. 21 x WT. 5.5 mm x Length

Max Size: OD. 720 x WT. 50 mm x Length

We can supply materials: 304, 304L, 316L, 309S, 310S, 317L, 321, 347, 904L, 2205

Surface Finish: Annealed&Pickled | 180# Polished | 240 # Polished | 300 # Polished etc

The main market: Europe, Japanese, USA, South America, Africa etc.





Description



The Heavy Wall Stainless Steel Pipe,We can produce seamless and welded pipe



Marking: Registered logo,Heat Number,Steel Grade,Standard,Size



Packing: Plastic bag in bundle Or Wooden Pallet Or Be requested by buyer



H.S Code: 7304.4190 ( For seamless heavy wall stainless steel pipe )





Ordering Information:



It shall be the responsibility of the purchaser to specify all requirements that are necessary for products under this specification. Such requirements to be considered included,but are not limited to,the following:



1 Quantity ( feet, meters, or number of lengths )

2 Name of material ( seamless or welded )

3 Steel Grade

4 Size ( OD. or ID. Wall )

5 Length ( specific or random )

6 Special Requirements





Applications

  1. Petroleum,Chemical industry,Environment protection equipment,
  2. Medical equipment,Shipbuilding industry,Paper making factory,
  3. Pollution discharging project etc.





Specification



Type Of Pipe

Seamless,straight-seamless welded,

and heavily cold worked austenitic stainless steel pipe

Manufacture Process

Seamless (SML) Pipe | Welded ( WLD )

Length tolerance

+/- 5mm |  +/- 10mm







Permitted Variations

In Wall Thickness







                   Tolerance,% from Nominal



Outside Diameter                                         Over      Under

21 mm to below and 60mm                           10%      10%

Above 60mm to below and 101.6mm            10%      12.5%

Above 101.6mm to below and 219.1mm       11%      12.5%

Above 219.1mm to below and 323.9mm       12.5%   12.5%

Above 323.9mm to below and 406.4mm       13.5%   12.5%

Above 406.4mm to below and 508.0mm       15%      12.5%

Above 508.0mm to below and 609.6mm       10%      12.5%

Above 609.6mm to below and 720mm          10%       10%



Inspection item

  1. Size(outside,wall,length);
  2. Surface of Pipe;
  3. Chemical Composition
  4. Mechanical Testing
  5. Hydro-static Or Nondestructive Electric Test
  6. ICT(Inter-granular Corrosion Test)  etc.

Ordering

Information

  • Quantity(feet,meters, or number of lengths)
  • Steel Grade
  • Size(outside diameter,nominal wall thickness,length)
  • Test report requirements
  • Other special requirements from buyers ..
