304 304L 316 316L Stainless Steel Oval Tube with Cold Drawn , 10mm*20mm

Good quality Stainless Steel Pipe Fitting for sales
Good quality Stainless Steel Pipe Fitting for sales
I'm Online Chat Now

304 304L 316 316L Stainless Steel Oval Tube with Cold Drawn , 10mm*20mm

China 304 304L 316 316L Stainless Steel Oval Tube with Cold Drawn , 10mm*20mm supplier

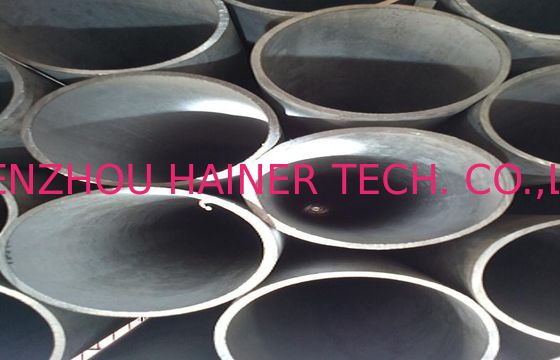

Large Image :  304 304L 316 316L Stainless Steel Oval Tube with Cold Drawn , 10mm*20mm

Product Details:

Place of Origin: China
Brand Name: Hainer Steel
Certification: ISO9001,SGS,CQC,BV, TUV etc.
Model Number: 304/304L,316L,310S, 904L etc.

Payment & Shipping Terms:

Minimum Order Quantity: 500Kgs/ one size
Price: Negotiation
Packaging Details: Plastic bag in bundle,Wooden box,etc.
Delivery Time: 10-15 days
Payment Terms: T/T, L/C at sight
Supply Ability: 1000Tons/Month
Detailed Product Description
Size Of Elliptical Tube: 10 X 20mm; 20 X 40mm; 50 X 100mm; 60 X 120mm Etc Wall Thickness: 3mm, 4mm, 5mm,6mm Etc
Heat Treatment Method: Cold Finished And Annealed Surface Of Elliptical Tube: Pickled | 2B Finished | Mirror Polish Etc.
Length Of Oval Pipe: 20feet ( 5.8 Or 6.1 Meter ); Single Random Or Double Random
High Light:

stainless steel oval tubing

,

Stainless Steel Oval Pipe



304 304L 316 316L Stainless Steel Oval Tube with Cold Drawn , 10mm*20mm





Quick Detail:



This elliptical steel tube,included seamless and welded,be made by round stainless steel tube. If the tube is welded elliptical steel tube,the manufacturing process of round stainless steel tube according to ASTM, DIN, GOST, like ASTM A312 / ASTM A544 / ASTM A249 etc.



Surface Finish Of Oval Steel Pipe: 2B Finish | Pickled Finished | Annealed&Pickled etc.

Size Of Oval Tube: 10 x 20mm to 80 x 160mm

Wall thickness of tube: 1.5 mm to 6 mm For Small Size

Length of tube: 3000 mm; 6000 mm; 6100mm | 10feet; 15feet; 20feet; 30feet; 35feet etc.





Description:



We can supply type of tube:



Welded Oval Tube,Welded Elliptical Tube, Welded Square Tube;

Welded Rectangular Tube, Seamless Oval Tube, Seamless Square Tube;

Seamless Stainless Elliptical Tube, Seamless Stainless Rectangulare Tube.



The Mainly Material :



SUS 201 / AISI 201 / S20100 ;

1. 4301/ SUS304/ AISI304/ S30400,

1. 4306/ SUS304L/ AISI304L/ S30403;

1. 4404/ SUS316L/ AISI316L/ S31603, etc.



Ordering Information:

It shall be the responsibility of the purchaser to specify all requirements that are necessary for products

under this specification. Such requirements to be considered included,but are not limited to,the following:

1 Quantity ( feet, meters, or number of lengths )

2 Name of material ( seamless tubes )

3 Steel Grade ( Table2 )

4 Size ( Table1 )

5 Length ( specific or random )

6 Condition ( hot finished or cold finished



Marking: Registered logo,Heat Number,Steel Grade,Standard,Size



H.S Code: 7306.4000 ( For Welded Steel Oval | Elliptical | Square | Rectangular Tube )



Applications:



This type welded Oval | Elliptical Steel tubes/pipes be used in

  1. Industrial fluid conveying pipes
  2. Mechanical structural tubes
  3. Walled water tubes



TABLE1 Sizes for Oval | Elliptical | Square | Rectangular Tube

Small Sizes



Wall

Thickness



Size

1.5  mm

2.0   mm

3.0 mm

3.5 mm

4.0  mm

4.5  mm

5.0

mm

6.0  mm

8.0  mm

9.0  mm

10.0  mm

12.0  mm

10x10mm

10x20mm

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

20x20mm

20x40mm

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

40x40mm

40x80mm

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

50x50mm

50x100mm

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

60x60mm

60x120mm

×

×

×

×

×

×

×

×

×

×

×

×

80x80mm

80x160mm

×

×

×

×

×

×

×

×

×

×

×

×

×





Specification:( For Welded Round Pipe )



Designation: A312/A312M-04a

Standard specifications For Seamless,Welded,and Heavily Cold Worked

Austenitic Steel Pipes



Tensile Requirements:







Grade



UNS

Tensile

Strength

Yield

Strength

Elongation in 2in.

Or 50mm

Designation

Min,Ks i

[ Mp a ]

Min,Ks i

[ Mp a ]

Min, %



TP304

S30400

75[515]

30[205]

25

TP304L

S30403

70[485]

25[170]

25

TP316L

S31603

70[485]

25[170]

25



Our advantage

  1. 100% Tube Hydro-static Test or Nondestructive Electric Test
  2. Special sizes we can produce
  3. Big stock raw material in warehouse
  4. Tensile Test for each Heat No.’s material
  5. 100% Annealing&Solution and Pickling
