Home ProductsPrecision Seamless Steel Tube

ASTM A179 Seamless Cold Drawn Big Wall Precision Steel Tube With Plain End

Good quality Stainless Steel Pipe Fitting for sales
Good quality Stainless Steel Pipe Fitting for sales
I'm Online Chat Now

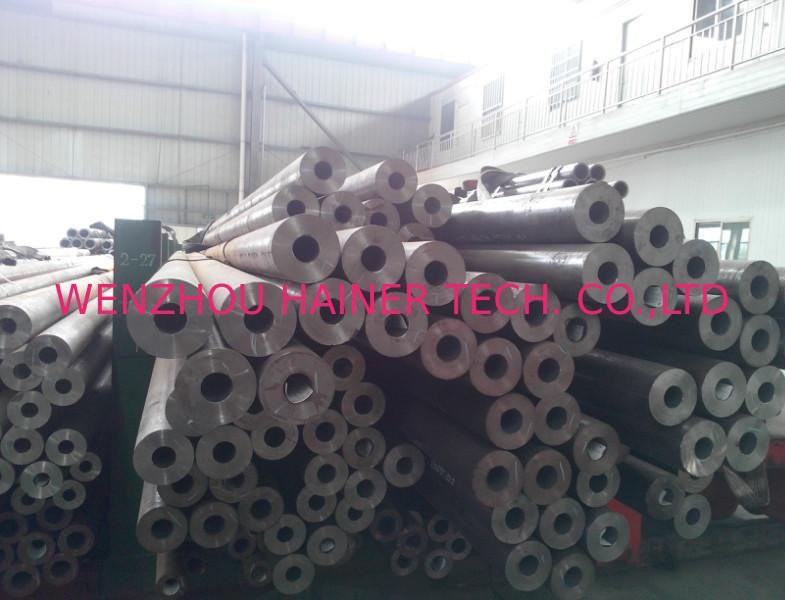

ASTM A179 Seamless Cold Drawn Big Wall Precision Steel Tube With Plain End

China ASTM A179 Seamless Cold Drawn Big Wall Precision Steel Tube With Plain End supplier

Large Image :  ASTM A179 Seamless Cold Drawn Big Wall Precision Steel Tube With Plain End

Product Details:

Place of Origin: China
Brand Name: Cosco Steel
Certification: ISO,SGS,CQC,etc.
Model Number: ASTM A179, ASTM A192,10#,20#,45#,16Mn,A53(A,B),A106

Payment & Shipping Terms:

Minimum Order Quantity: 500Kgs/ one size
Price: Negotiation
Packaging Details: Plastic bag in bundle,Wooden box,etc.
Delivery Time: 25-30 days
Payment Terms: T/T, L/C at sight
Supply Ability: 600Tons/Month
Contact Now
Detailed Product Description
Process: Hot Rolled Standard: ASTM,JIS ,DIN,GB,BS
End Of Tube: Beveled Or Plain End Surface: Bare, Varnished,oiled, Anti-corrosion Coating As Request
Thickness: 4-30mm Outer Diameter: 27-426mm



ASTM A179 Seamless Cold Drawn Big Wall Precision Steel Tube With Plain End





Quick Detail:

  1. Grade:10#,20#,45#,15CrMo,12Cr2Mo,12Cr1MoVG,15CrMoG,St37,St52,St45,ST35,10#-45#,Cr-Mo alloy,ST35-ST52
  2. Standard:GB/T 3639-2000,GB/T 8713,DIN 2391,DIN EN 10305,GB,DIN
  3. Process:Hot rolled
  4. Surface Treatment: PE Coated
  5. Surface:bare, varnished,oiled, anti-corrosion coating as request
  6. Thickness:4-100mm
  7. Outer Diameter: 27-426mm
  8. Application:Hydraulic Pipe
  9. Certification:ISO,SGS,CE
  10. Alloy Or Not:Non-alloy


Description:


  1. Product Item No.: 010Precision-Cosco Steel
  2. OD:3/4’’-24” WT: SCH10-SCH160

  3. Standard API ANSI ASTM GB DIN JIS

  4. Material ASTM 106/A53 GrB API5L GrB 20#,35#,45#, 20G,20A,40Mn2,27SiMn,40MnB,20MnVB,20Cr,35Cr,35Cr,40Cr,45Cr,50Cr,38CrSi,12CrMo,20CrMo,

  5. 35CrMo,42CrMo,12CrMoV,12Cr1MoV,38CrMoAl,50CrV,20CrMnSi,35CrMnSi,20CrMnTi,30CrMnTi,

  6. 12CrNi2,12CrNi3,12Cr2Ni4,40CrNiMoA,45CrNiMoVA,20G,20MnG,25MnG,12CrMoG

  7. Packing Standard package, Beveled ends, anti-rust oil, platic caps,or as customer’s requirement.

  8. Application Oil and casting pipe; Hydraulic Pillar  used Pipe; Pressure Vessel Pipe;Automoble Pipe; War industy Pipe and so on.

  9. Quanlity API 5L, DNV, ISO

  10. Others 1) Special design available according to customers' requirement
    2) anti-corrosion and high temperature resistant with black painting
    3) All the production process are according to the ISO 9001:2008 strictly,GB/T 8163-1999,GB



Specification



Designation A179/A179M-90a

Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-exchnager

And Condenser Tubes



This specification covers

1.1 Minimum-wall-thickness,seamless cold-drawn low-carbon steel tubes for tubular heat

ex-changer,condensers,and similar heat transfer apparatus

1.2 Outside diameter 1/8 to 3 in. [ 3.2 to 76.2mm ]

Ordering information

  • Quantity(feet,meters, or number of lengths)
  • Name of material (seamless tubes)
  • Manufacture (cold-drawn)
  • Size(outside diameter,nominal wall thickness,length)
  • Length (specific or random)
  • Test report requirements
  • Special requirements

Chemical Composition

A179

Carbon, %

0.06 - 0.18

Hardness requirements,not exceeding 72 HRB

Manganese, %

0.27 - 0.53

Phosphorus,max,%

0.035

Sulfur,max,%

0.035



Inspection item

  1. Flattening Test
  2. Flaring Test
  3. Flange Test
  4. Hardness Test
  5. Hydro-static Test

Tensile requirements

Tensile Strength.min,ks i[Mp a]

47 [325]

Yield Strength.min,ks i[Mp a]

26 [180]

Elongation in 2in. Or 50mm,min,%

35







Our advantage


We owned special equipment for manufacturing various high precision products

  1. High-precision cold drawing unit
  2. Bright annealing oven
  3. Straighter
  4. 100% UT inspection if buyer requested
  5. 100% ET inspection if buyer requested



ASTM A179 Seamless Cold Drawn Big Wall Precision Steel Tube With Plain End
