Small Diameter Pipe Stainless Steel Heat Exchanger Tube 304 304L 316L

China Small Diameter Pipe Stainless Steel Heat Exchanger Tube 304 304L 316L supplier
Small Diameter Pipe Stainless Steel Heat Exchanger Tube 304 304L 316L supplier Small Diameter Pipe Stainless Steel Heat Exchanger Tube 304 304L 316L supplier Small Diameter Pipe Stainless Steel Heat Exchanger Tube 304 304L 316L supplier

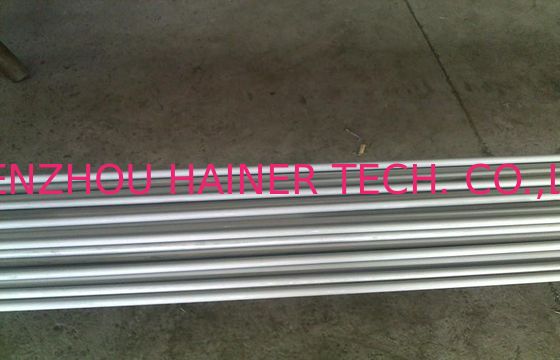

Large Image :  Small Diameter Pipe Stainless Steel Heat Exchanger Tube 304 304L 316L

Product Details:

Place of Origin: China
Brand Name: Cosco Steel
Certification: ISO,SGS,CQC,etc.
Model Number: 304, 304L, 316L etc.

Payment & Shipping Terms:

Minimum Order Quantity: 500Kgs/ one size
Price: Negotiation
Packaging Details: Plastic bag in bundle,Wooden box,etc.
Delivery Time: 25-30 days
Payment Terms: T/T, L/C at sight
Supply Ability: 600Tons/Month
Contact Now
Detailed Product Description
Type Of Tube: Welded Boiler And Heat-exchanger Tube Tube Standard: ASTM A249/A 249M - 04
Surface Condition: After Final Heat Treatment,Shall Be Pickled Free Of Scale Grades: Tp304 | Tp304L | Tp316 | Tp316L | Tp309S | Tp310S Etc.


Small Diameter Pipe Stainless Steel Heat Exchanger Tube 304 304L 316L



Quick Detail:

Size Random: 6mm to 219mm
Thickness Random: 0.5mm to 8.0 mm
Thicnness Tolerance: +/- 002mm
Length Random: 1000mm, 2000mm, 6000mm or as required
Surface Finish:  2B Finish, BA Finish, No.1 Finish etc.
Tube Standard: ASTM A249
304 Nickel Content: Above 8%
316L Nickel Content: Above 10%
321 Nickel Content: Above 9%




Specifications

Grade

200Series And 300 Series

Thickness

0.5mm-8mm or according to customer's required

Length

Nomal is 6/5.8m,or according to customer's demand

Size

Insider Diamter: Mini 3.2mm
Outsider Diameter: Max 304.8mm

Surface

No. 1 | 2B | BA | Bright | Mirror | HL  etc.

Packing

Every tube is sleeved in plastic bag individually,and then several tube are packed by weaving bag,which is seaworthy.Or 50kg/bundle,500kg/bundle.We can pack as clients' requirement.

Thickness tolerance

 ±0.02mm

Test

 Squash test,extended test,water pressure test,heat treatment,NDT

Technique

 Welded

Certification

 ISO,SGS,CQC,etc.

Sample

 Available




Surface Finish

Steel is first rolled to the wanted size and thickness and then annealed to change the properties of the final material. Any oxidation that forms on the surface is removed by pickling, and a passivisaion layer is created on the surface. A final finish can then be applied to achieve the desired aesthetic.

The surface of our round welded stainless steel heat exchanger tube includes:
mirror polishing/stain/customized



Surface Finish

Definition

Application



2B


Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.

Medical equipment, Food industry, Construction material, Kitchen utensils.

BA

Those processed with bright heat treatment after cold rolling.

Kitchen utensils, Electric equipment, Building construction.

NO.3

Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.

Kitchen utensils, Building construction.

NO.4

Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.

Kitchen utensils, Building construction, Medical equipment.

HL

Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.

Building Construction.

NO.1

The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.

Chemical tank, pipe.
