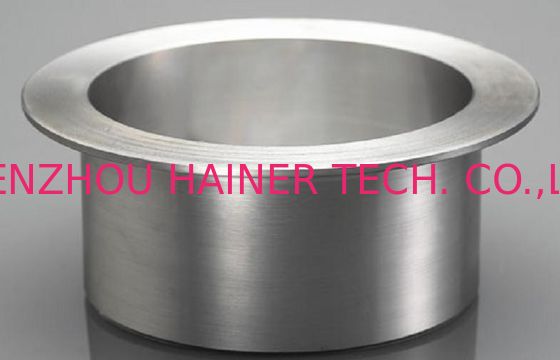

Lap Joint Stub End Stainless Steel Pipe Fitting JIS B2312 / ANSI B16.9
Lap Joint Flange
With high tensile strength, these steel lap joint flanges are available with a raised face and back ups for easy installation. Resistant to corrosion, these joint flanges have high tensile strength and weld ability. Use of superior quality alloy for raw material makes our range extremely durable. Available in standard dimensions, these lap joint flanges can also be customized as per client's requirement.
PN1.0--------58.0
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400
Flange Facing Types
Flat Face (FF), Raised face (RF), groove (G), female(F), ring joints face(RJ)
Applications:
We,this type pipe fittings be widely used in kinds of industries:
Specification
|
DN |
NPS |
Outside Diameter |
Long Pattern Length,F |
Short Pattern Length,F |
|
Diameter of Lap,G |
||||
|
Max |
Min |
|||||||||
|
mm |
Inch |
mm |
Inch |
|||||||
|
15 |
1/2 |
22.8 |
0.896 |
20.5 |
0.809 |
76 |
51 |
3 |
35 |
|
|
20 |
3/4 |
28.1 |
1.106 |
25.9 |
1.019 |
76 |
51 |
3 |
43 |
|
|
25 |
1 |
35.0 |
10376 |
32.6 |
1.284 |
102 |
51 |
3 |
51 |
|
|
32 |
1.1/4 |
43.6 |
10716 |
41.4 |
1.629 |
102 |
51 |
5 |
64 |
|
|
40 |
1.1/2 |
49.9 |
1.965 |
47.5 |
1.869 |
102 |
51 |
6 |
73 |
|
|
50 |
2 |
62.4 |
2.456 |
59.5 |
2.344 |
152 |
64 |
8 |
92 |
|
|
65 |
2.1/2 |
75.3 |
2.966 |
72.2 |
2.844 |
152 |
64 |
8 |
105 |
|
|
80 |
3 |
91.3 |
3.596 |
88.1 |
3.469 |
152 |
64 |
10 |
127 |
|
|
90 |
3.1/2 |
104.0 |
4.096 |
100.8 |
3.969 |
152 |
76 |
10 |
140 |
|
|
100 |
4 |
116.7 |
4.593 |
113.5 |
4.469 |
152 |
76 |
11 |
157 |
|
|
125 |
5 |
144.3 |
5.683 |
140.5 |
5.532 |
203 |
76 |
11 |
186 |
|
|
150 |
6 |
171.3 |
6.743 |
167.5 |
6.594 |
203 |
89 |
13 |
216 |
|
|
200 |
8 |
222.1 |
8.743 |
218.3 |
8.594 |
203 |
102 |
13 |
270 |
|
|
250 |
10 |
277.2 |
10.913 |
272.3 |
10.719 |
254 |
127 |
13 |
324 |
|
|
300 |
12 |
328.0 |
12.913 |
323.1 |
12.719 |
254 |
152 |
13 |
381 |
|
|
350 |
14 |
359.9 |
14.170 |
354.8 |
13.969 |
305 |
152 |
13 |
413 |
|
|
400 |
16 |
411.0 |
16.180 |
405.6 |
15.969 |
305 |
152 |
13 |
470 |
|
|
450 |
18 |
462.0 |
18.190 |
456.0 |
17.969 |
305 |
152 |
13 |
533 |
|
|
500 |
20 |
514.0 |
20.240 |
507.0 |
19.969 |
305 |
152 |
13 |
584 |
|
|
550 |
22 |
565.0 |
22.240 |
558.0 |
21.969 |
305 |
152 |
13 |
641 |
|
|
600 |
24 |
616.0 |
24.240 |
609.0 |
23.969 |
305 |
152 |
13 |
692 |
|
